PP25 Power Pack
- Four-cylinder Kubota Diesel Engine, Tier 4 Final, liquid-cooled
- 49.5 HP
- Tank capacity approximately 95 l (25 U.S. gal)
- Starter battery
- Fuel Burn Rate: – 2200 rpm = 2.22 gal/h – 2400 rpm = 2.48 gal/h
DT650 Mixing Station
- Fully automatic water dosage
- Fully automatic mixing capabilities with pre-adjusted recipe
- Mixing tanks on load cells for automatic mixing control
- Digital screen for data logging and recipe input

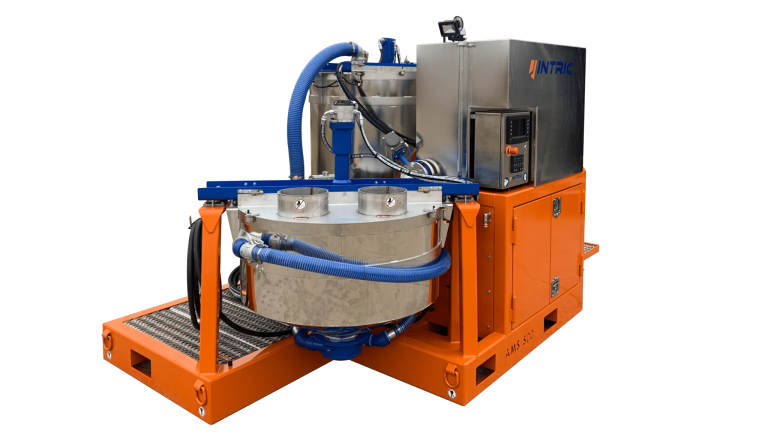

AMS500 Mixing Station
- Fully automatic mixing station
- 330 gal storage tank and 125 gal mixing tank
- Modular design with multiple power source options
- Combine with PS-300 for a fully automatic grout plant

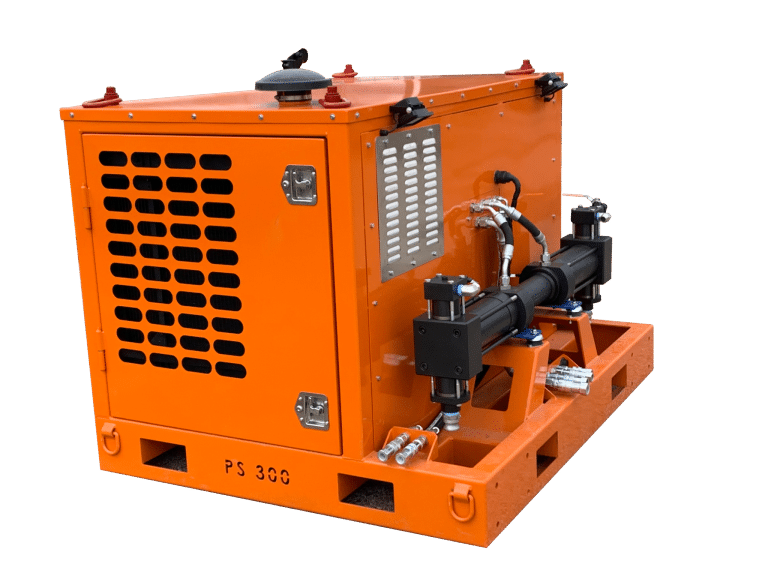

PS-300 Pump Station
- Modular pump station
- 65 HP Kubota diesel engine, Tier4 Final
- 80 gal per minute and up to 1800 psi
- Connect to AMS500 for a fully automatic grout plant
- Multiple pump options
Intric D-12 Grout Plant
- Single hydraulic-driven, double-acting piston
pump, check valve operated suction and
pressure valves - Maximum Flow: 60 gal/min*
- Maximum Pressure: 1800 PSI (120 bar)*
Intric D-9 Grout Plant
- Single hydraulic-driven, double-acting piston pump, check valve operated suction and pressure valves
- Maximum Flow: 30 gal/min (113.5 liter/min)*
- Maximum Pressure: 1800 PSI (120 bar)*
