Intric AMS500 Mixing Station | Fully Automated

The Intric AMS500 Mixing Station is a Made in the USA, fully automated high‑shear grout and slurry mixing system engineered to deliver consistent, repeatable batches with precise water, material, and mixing controls for demanding foundation and infrastructure projects.

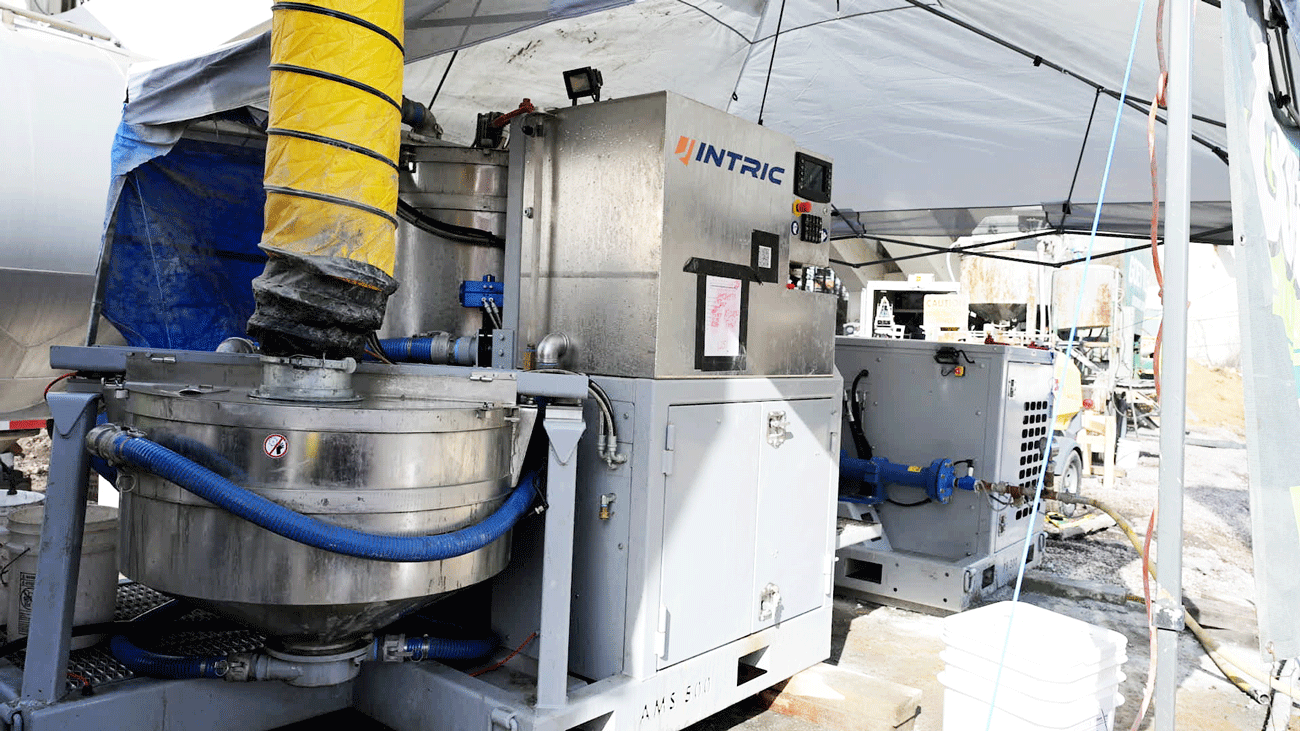

Made in the USA Intric AMS500 fully automated mixing station with 125 gallon high-shear mixing tank, 330 gallon storage tank, and diesel power pack set up on jobsite, available for rent or purchase from National Piling Products

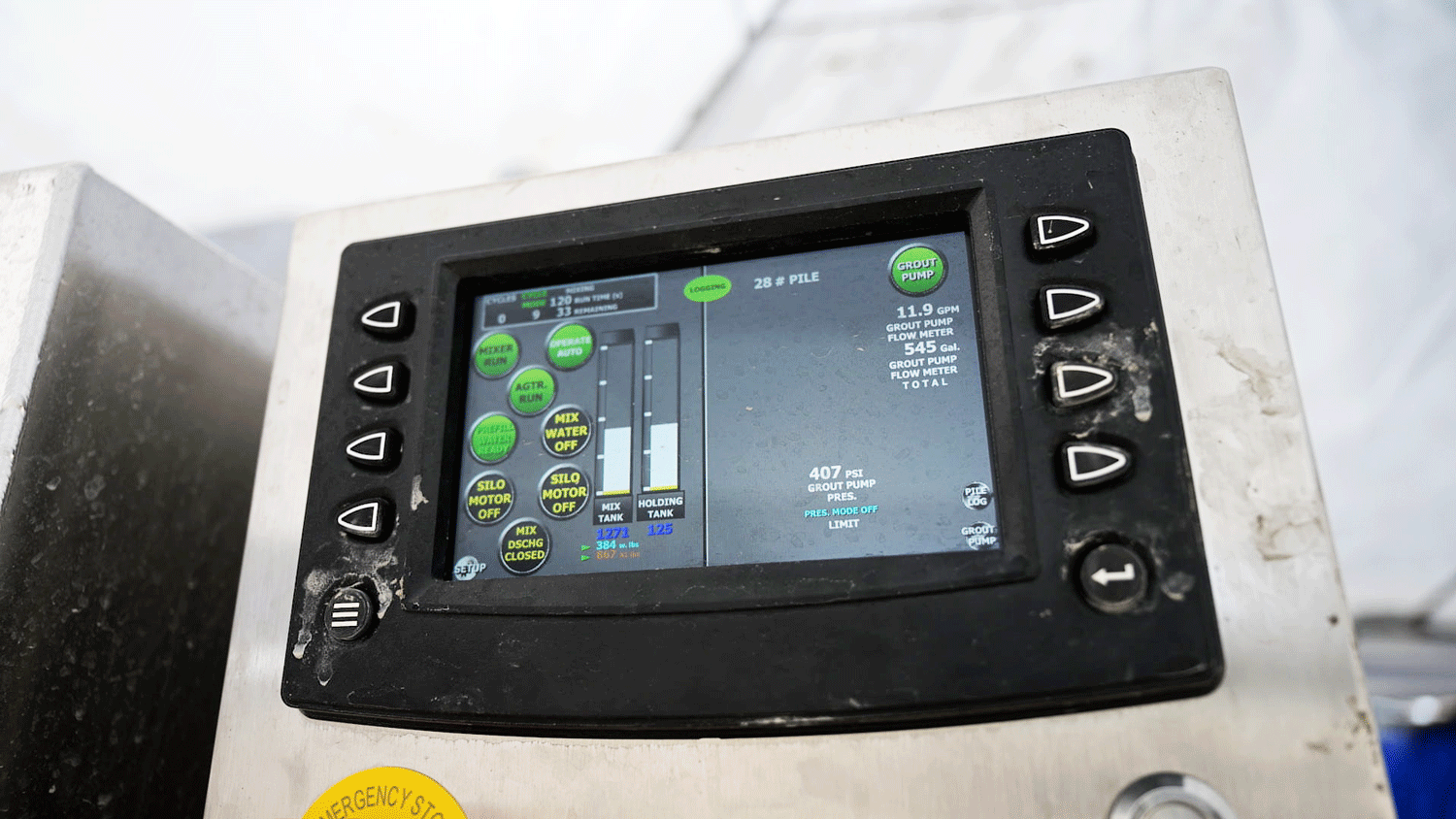

Intric AMS500 fully automated mixing station touchscreen control panel showing live grout pump flow, pressure, tank levels, and batch data logging on jobsite

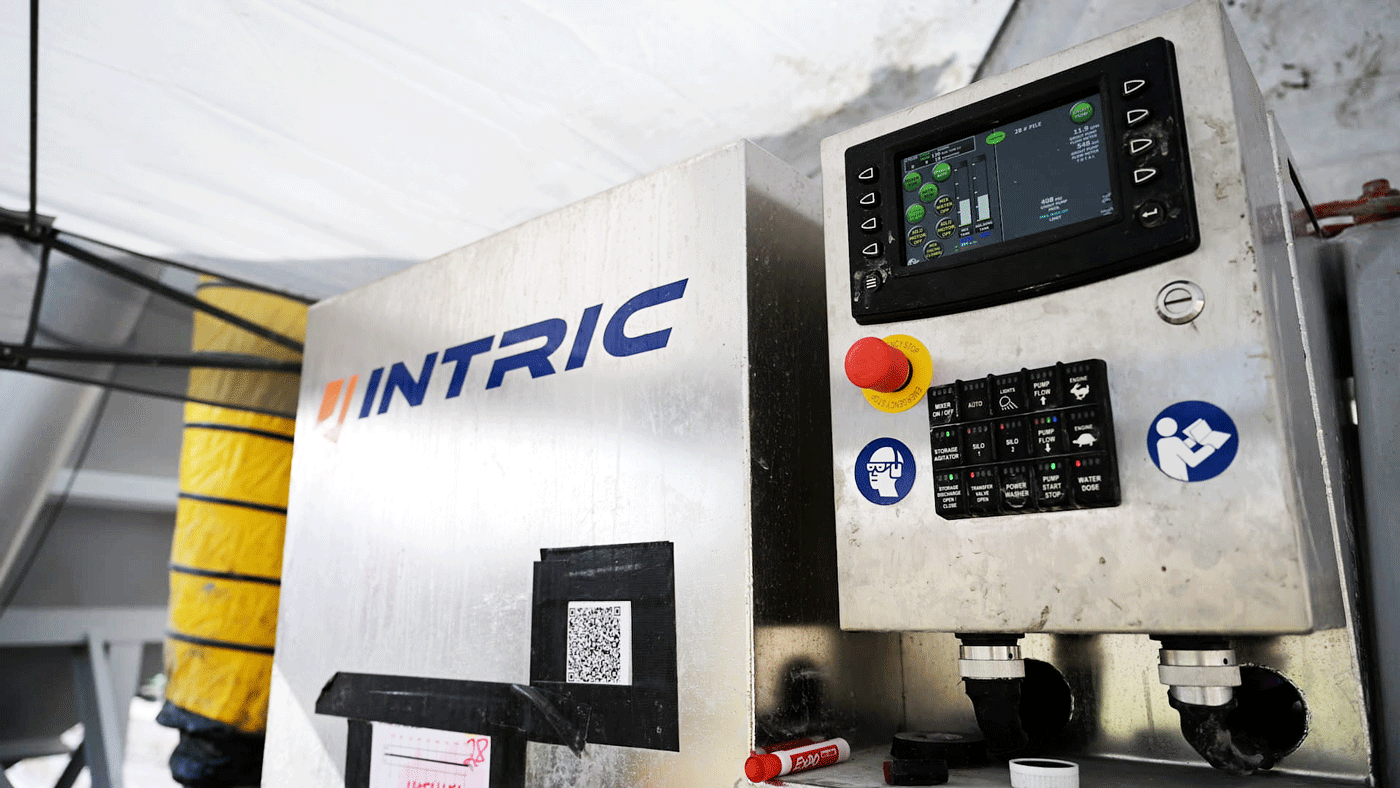

Made in the USA Intric AMS500 fully automated mixing station control cabinet with touchscreen, emergency stop, and keypad controls available for rent or purchase from National Piling Products
Made in the USA Intric AMS500 fully automated mixing station with stainless control cabinet, structural frame, and stainless mixing tank available for rent or purchase from National Piling Products

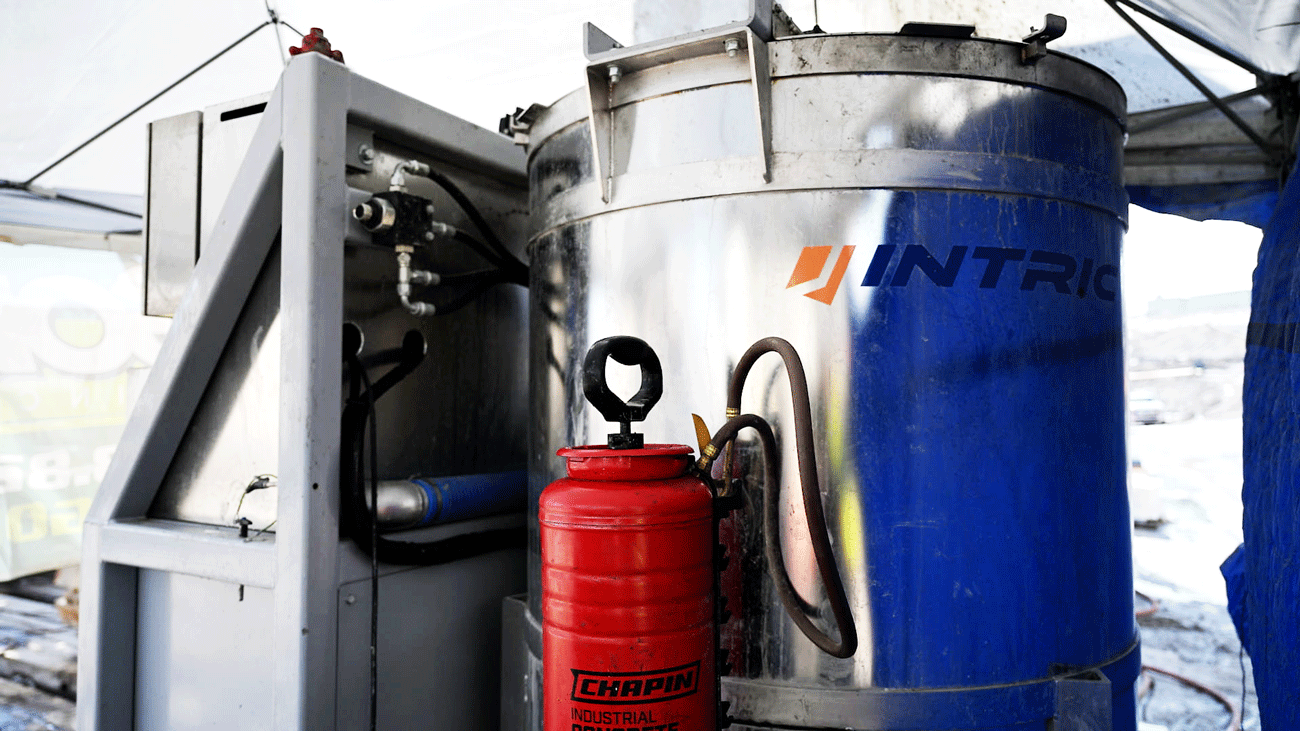

Alt tag: Made in the USA Intric AMS500 fully automated mixing station stainless steel storage tank and frame with jobsite safety equipment, available for rent or purchase from National Piling Products

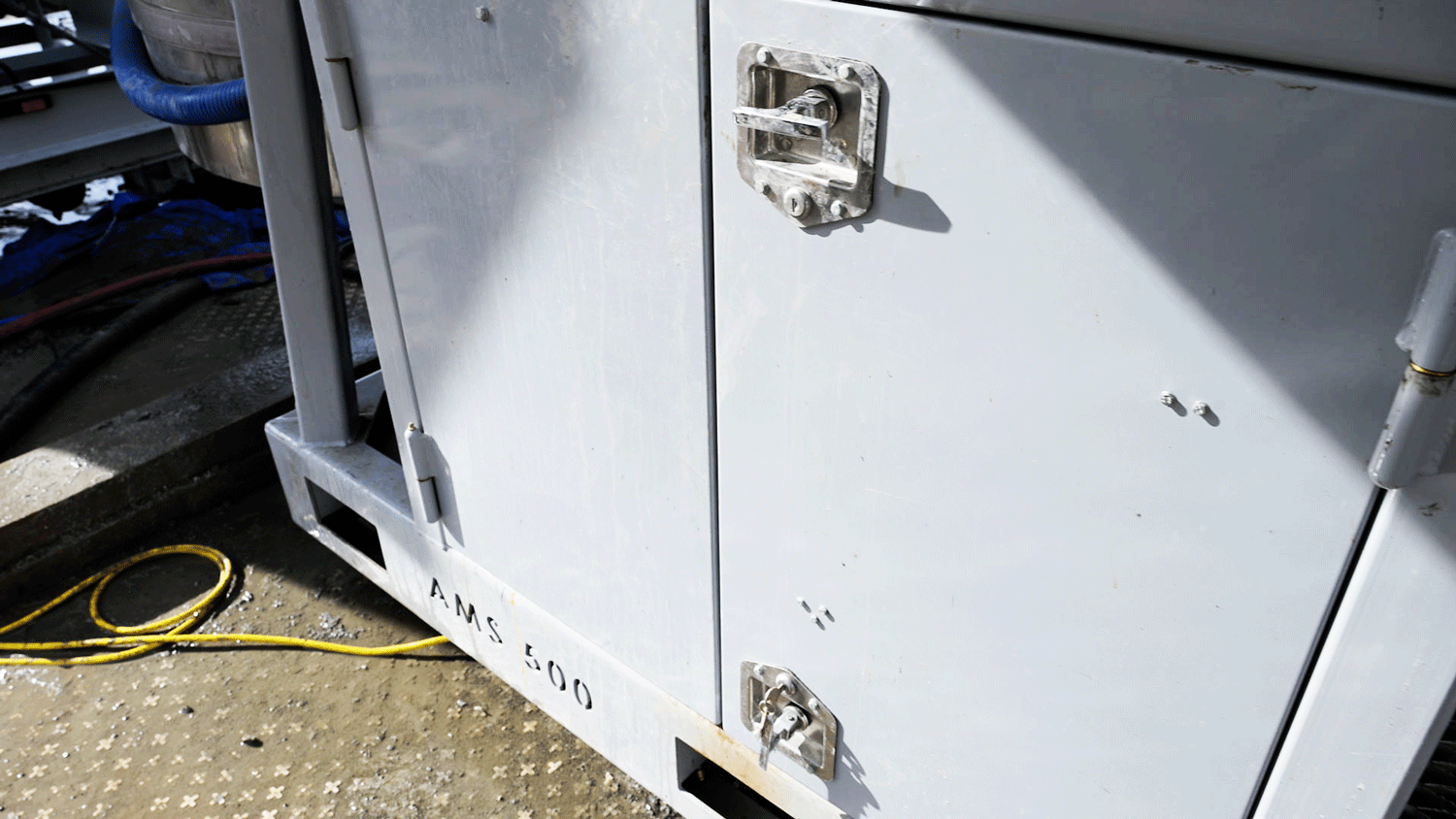

Made in the USA Intric AMS500 mixing station skid base and lockable service cabinet doors showing heavy-duty construction and forklift pockets for rent or purchase from National Piling Products
Made in the USA Intric AMS500 high-shear mixing tank with lid open showing grout vortex and stainless construction on fully automated mixing station for rent or purchase from National Piling Products

AMS500 Mixing Station Specs and Job Types

Intric AMS500 Mixing Station – Key Specs

  • Proudly made in the USA

  • Fully automatic, Made in the USA high‑shear grout and slurry mixing station.​

  • 125 gal stainless steel high‑shear mixing tank with bag‑ripper hopper/silo attachment.​

  • 330 gal storage tank with variable‑speed hydraulic agitator and sonar level sensor.​

  • 150 gal integrated stainless water/dosing tank with automated water metering and flush connection.​

  • Adjustable mixing speed up to 1800 rpm, capable of mixing water‑cement ratios down to 0.32 by weight.​

  • Mixing tank mounted on 10K load cells for automatic batching by weight and precise water addition.​

  • Skid‑mounted frame with forklift pockets; approx. 96 in W x 72 in L x 76 in H, about 2,500 lb.​

  • Touch‑screen IP67 control with automatic/manual modes, recipe storage, and batching data logging.​

Typical Intric AMS500 Job Applications

  • Micropile and ground anchor grouting where uniform, high‑quality cement grout supply is critical.​

  • Soil nail, slope stabilization, and general ground improvement projects using neat or sanded grout mixes.​

VIEW SPEC SHEET

Intric AMS500 overview

The Intric AMS500 is a Made in the USA, fully automated high‑shear mixing station developed to give contractors consistent, high‑quality grout and slurry production on demanding deep foundation and infrastructure projects. Built around a 125‑gallon stainless steel high‑shear mixing tank and a 330‑gallon agitated storage tank, it delivers repeatable batches with precise water and material control so crews can keep pumps fed and production moving on busy jobsites. With automated batching by weight, integrated water dosing, and recipe‑driven controls, the AMS500 is designed to standardize grout quality across shifts and projects instead of relying on manual mixing. The AMS500 is available for rent or sale and is stocked by National Piling Products, so it can be mobilized quickly as part of a complete, field‑proven grouting package.

Why rent or buy the Intric AMS500 from NPP

National Piling Products focuses on deep foundation and grouting solutions, supplying rental drill rigs, Intric grout plants, mixing stations, materials, load testing, and field consulting dedicated to micropile, anchor, and soil nail work. Because the AMS500 lives in the NPP rental fleet as well as the sales line, it shows up configured for real‑world production grouting—recipes, flows, and controls tuned for neat and sanded mixes—not as a bare factory machine. As a distributor for Intric Grouting Solutions, NPP carries AMS500 units and critical components in stock, helping contractors boost production and uptime whether they choose a long‑term purchase or a project‑specific rental.

Pair the AMS500 with the right pump and drill

The Intric AMS500 really shines as part of a complete grouting system, paired with Intric pump stations such as the PS‑300 and the D‑series grout plants on larger projects. National Piling Products can match the AMS500 with high‑shear pump packages and limited‑access drill rigs so your drilling, mixing, and pumping capacities stay aligned from submittals through production. By combining the AMS500 with TEI and Comacchio drill rigs and Intric grout plants from the NPP fleet, contractors get an integrated drilling and grouting solution where mix designs, grout volumes, and pressures are coordinated to keep piles, anchors, and nails moving without starving the pumps.

Top‑notch mechanic shop and support

NPP’s operation is anchored by a mechanic group with years of specialty setup and repair experience on deep foundation equipment, including Intric mixing stations and grout plants, Comacchio rigs, and TEI attachments. The shop maintains the rental fleet, supports custom AMS500 setups, and assists your crews through commissioning, production, and demobilization so the mixing station stays reliable instead of becoming a jobsite bottleneck. Whether you own or rent the AMS500, you get the same responsive technical and mechanical support behind the equipment.

Get in touch

Visit the National Piling Products YouTube channel for equipment walk‑throughs, mixing tutorials, and field tips focused on micropile and anchor grouting. For AMS500 rentals, sales, or application questions—or to discuss pairing the AMS500 with Intric pumps and TEI or Comacchio drill rigs—call 1‑855‑801‑7453 to talk with the National Piling Products team.
