Intric D9 Colloidal Grout Plant for Rent or Sale

National Piling Products, an authorized Intric distributor, offers the American‑made Intric D9 grout plant for both rental and purchase, with options to have each unit professionally painted in your company’s colors and fully branded with your logo so your fleet looks cohesive and stands out from competitors.

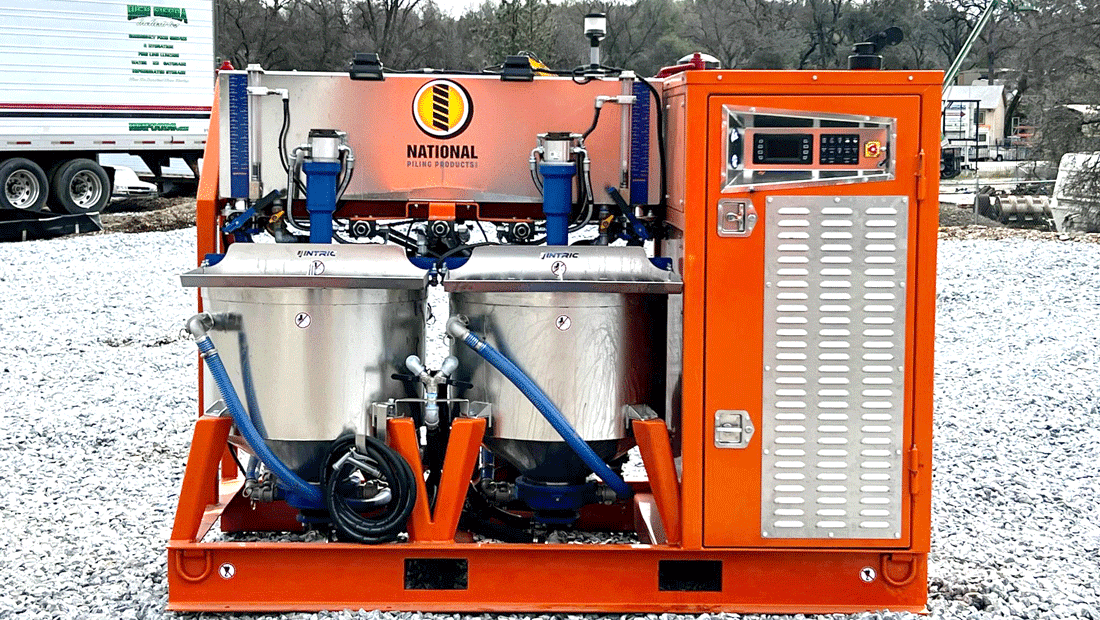

Bright orange INTRIC D9 colloidal grout plant from National Piling Products sitting on gravel at a job site, showing twin stainless steel mixing tanks, blue pumps, and enclosed control cabinet.

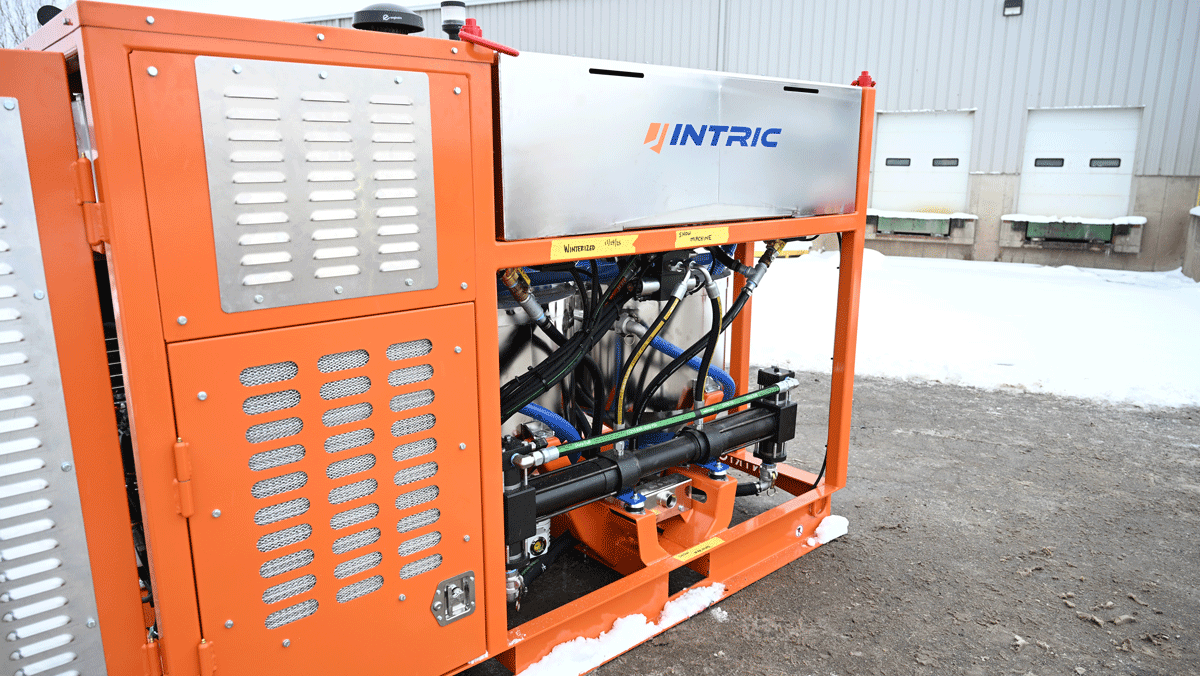

Intric D9 grout plant side view showing orange enclosure, Intric stainless tank, and exposed hydraulic components in snowy yard

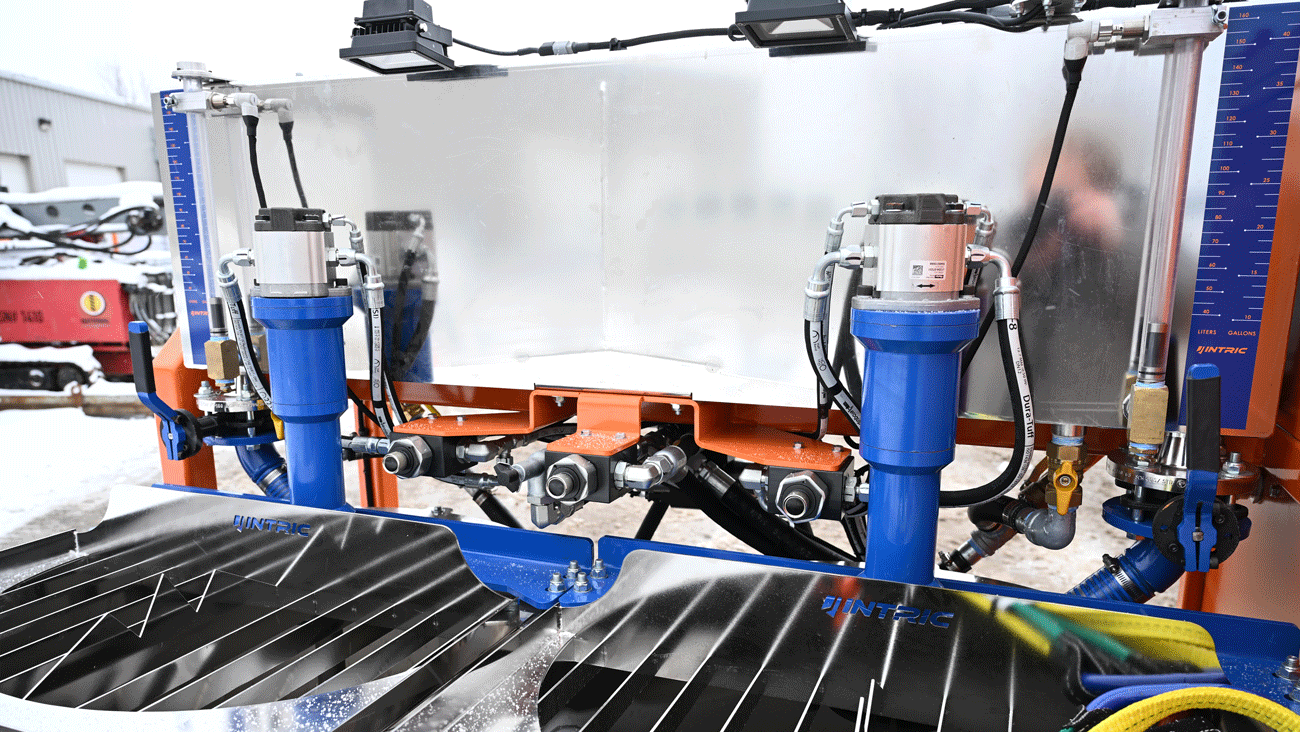

Intric D9 colloidal grout plant twin mixing hoppers and pump columns at National Piling Products yard

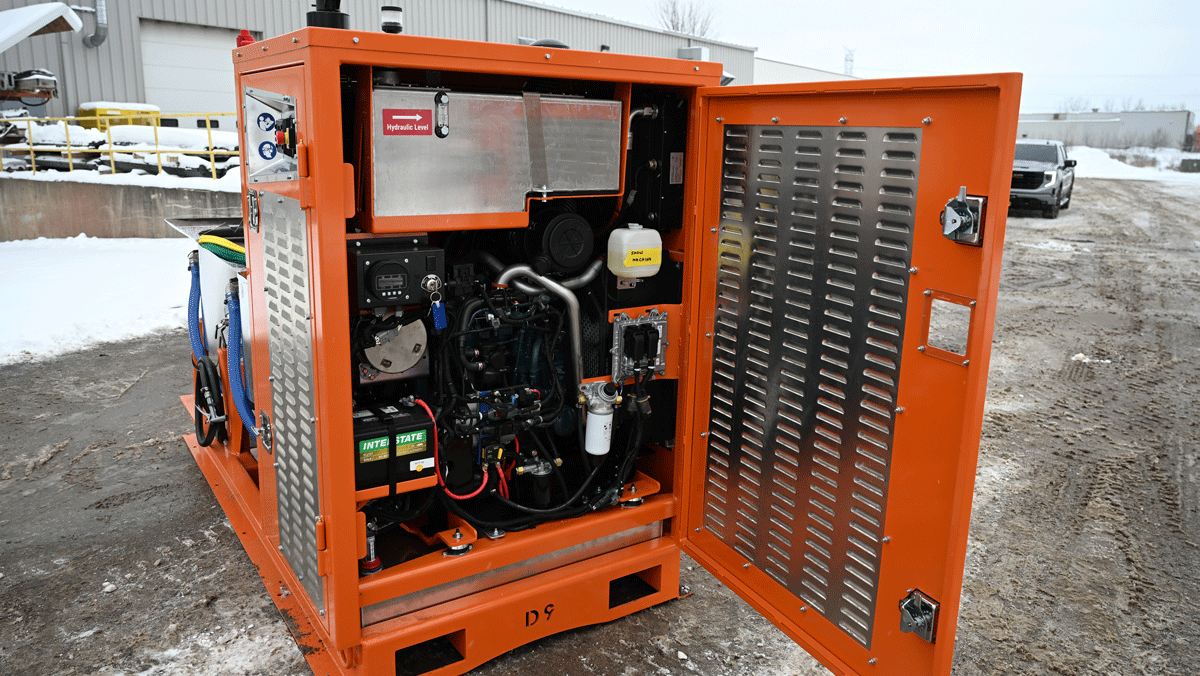

Intric D9 colloidal grout plant power pack with engine and hydraulic components exposed for service at National Piling Products yard

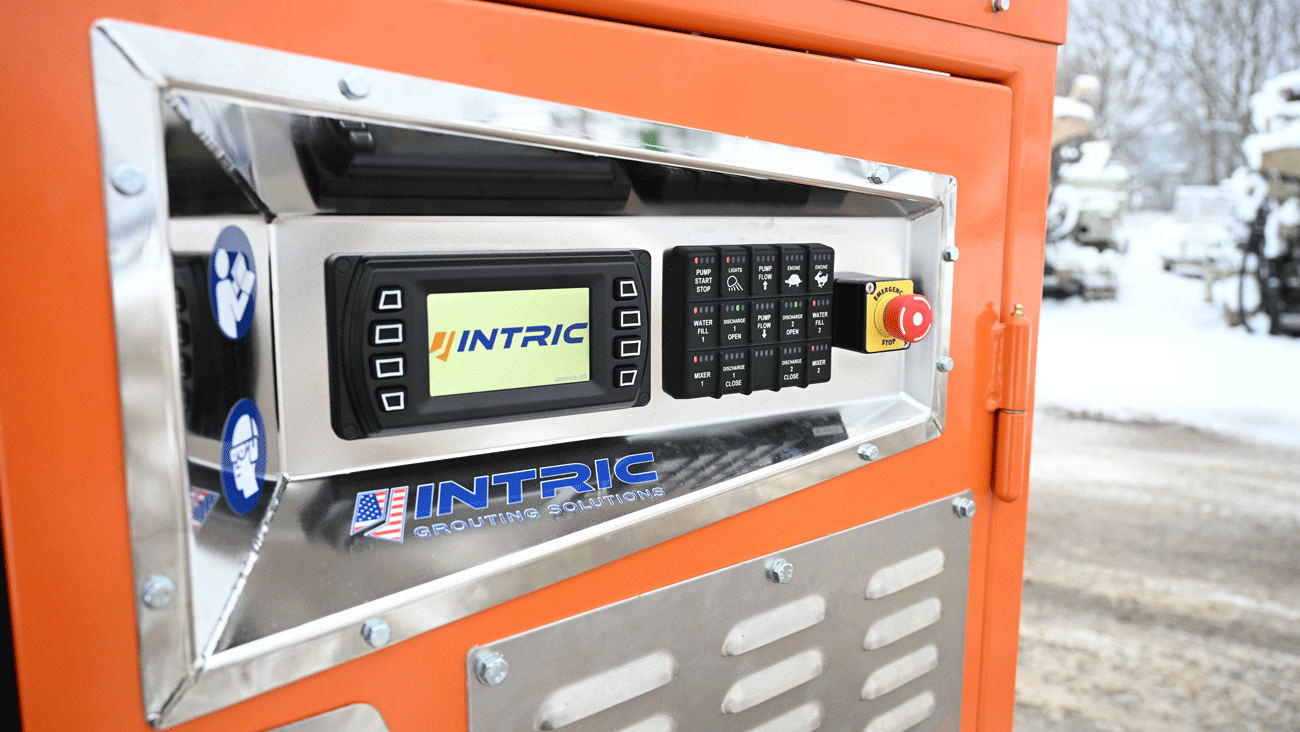

Intric D9 grout plant main control panel with digital display, function switches, and emergency stop button on orange enclosure

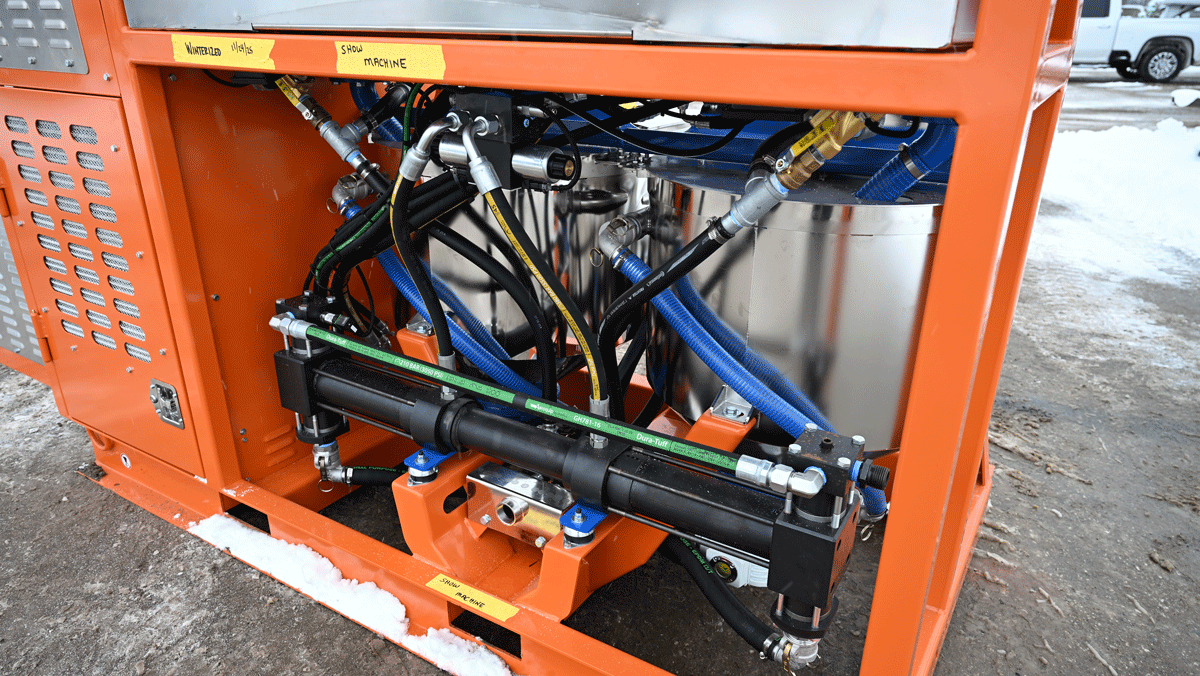

Hydraulic cylinder, hoses, and stainless tanks on Intric D9 grout plant frame at National Piling Products yard

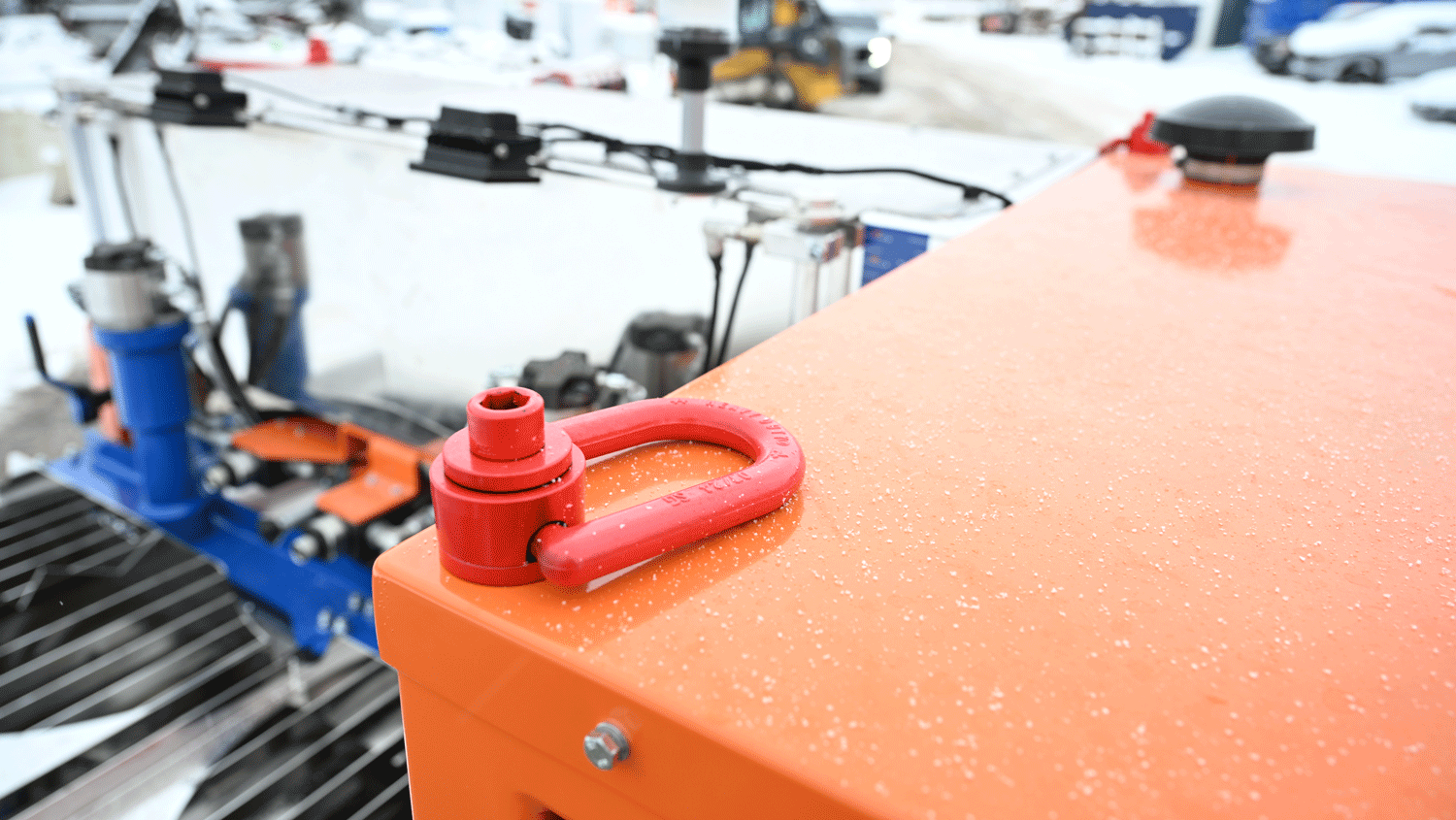

Intric D9 grout plant top deck with red lifting shackle and stainless mixing system in snowy National Piling Products yard
Intric D9 grout plant water tank, gauges, and blue pump columns above dual stainless mixing hoppers at National Piling Products yard

Intric D9 Grout Plant Specs & Typical Jobs

Key Specifications – Intric D9 Grout Plant

  • High-shear colloidal mixer for cementitious grouts and additives, producing thoroughly blended, high-quality grout.

  • Single hydraulic-driven, double-acting piston grout pump for consistent, high-pressure delivery.

  • Approximate maximum flow of 30 gal/min and pressure up to about 1,800 psi, ideal for medium to large, high-pressure work.

  • Dual mixing/storage tanks so one batch can mix while another is pumped, supporting continuous production.

  • 49.5 HP diesel power pack and compact skid-mounted frame with forklift pockets and detachable power pack for easy transport and flexible placement on site.

Typical Job Types for the Intric D9

  • Micropile grouting for deep foundations and underpinning.
  • Ground anchors, tiebacks, and soil nails for retaining walls and slope stabilization.
  • Permeation and consolidation grouting to reduce permeability and improve soil strength.
  • Void filling and contact grouting behind tunnel linings, under slabs, and around precast elements.
  • General geotechnical and structural grouting projects requiring reliable, high-pressure production.
VIEW SPEC SHEET

Intric D9 overview

The Intric D9 is a high‑shear, skid‑mounted colloidal grout plant developed as Intric’s first grout plant in a broader lineup, built on more than 15 years of field experience in the deep foundation industry. Designed as a true workhorse, the D9 checks all the key boxes for micropiles, anchors, soil nails, jet grouting, and general production grouting so crews can depend on it day in and day out, even in a market where quality plants are hard to find. With reliable piston pumping, high‑energy mixing, and a compact footprint, it produces consistent, high‑quality grout on tight, complex jobsites instead of forcing you to compromise on performance. The D9 sells and ships internationally, so it is available when and where you need it, with National Piling Products stocking units for rental and purchase.

Why rent the Intric D9 from NPP

National Piling Products is a deep foundation specialist serving the micropile and anchor market with rental equipment, Intric grout plants, materials, load testing, and field consulting. Because the D9 lives in the NPP rental fleet as well as the sales line, it shows up configured for real‑world production grouting, supported by a team that understands how to set up flows, pressures, and mixes for demanding ground conditions. As a distributor for Intric Grouting Solutions, NPP carries grout plants and parts in stock, helping contractors increase production and uptime with a plant that is ready to go to work.​

Partner the D9 with the right drill

The Intric D9 really shines as part of a complete deep foundation package, paired with specialty limited‑access drill rigs for micropile and anchor installations. National Piling Products is a leader in micropile drill rigs and heads, renting and selling TEI Rock Drills and Comacchio drill rigs that match seamlessly with Intric grout plants on confined, low‑headroom, and hard‑to‑reach sites. By partnering the D9 with TEI and Comacchio rigs from the NPP fleet, contractors get an integrated drilling and grouting solution where drill string sizes, grout volumes, and pressures are aligned to keep projects on track from the first pile to the last.​

Top‑notch mechanic shop and support

NPP’s operation is anchored by a mechanic group with years of specialty setup and repair experience on deep foundation equipment, including Intric grout plants, Comacchio rigs, TEI attachments, and other fleet gear. The shop maintains the rental fleet, troubleshoots pumps, hydraulics, and drill components, and supports your crews through startup, production, and demobilization to help keep the D9 productive on demanding jobs.​

Get in touch

Visit the National Piling Products YouTube channel for field support videos, Intric D9 walk‑throughs, and display overviews, and reach out with ideas for how‑to content tailored to your teams. For D9 rentals, sales, or application questions—or to discuss pairing the D9 with TEI or Comacchio drill rigs—call 1‑855‑801‑7453 to talk with the National Piling Products team.
